Energy Storage Systems

Energy Storage Systems

Containerised and cabinet-level energy storage systems for utility-scale, commercial and industrial applications: PCS and boost integrated containers, AC/DC integrated systems, DC containers and distributed ESS cabinets.

储能系统

Energy Storage Systems range

Containerised and cabinet-level energy storage systems for utility-scale, commercial and industrial applications: PCS and boost integrated containers, AC/DC integrated systems, DC containers and distributed ESS cabinets.

01 / 05

PCS (Power Conversion System) & Boost Integrated Container

储能变流升压一体机
PCS (Power Conversion System) & Boost Integrated Container
Technical parameterSpecification
Product modelGS-PCS5000-T
Rated output power5000 kW / 10,000 kW
DC voltage range1050 – 1500 V
Maximum DC current2620 A × 4
Number of DC input channels4
AC voltage range11 – 33 kV ±5%
Rated frequency50 / 60 Hz
Power factor> 0.99
Transformer typeOil-immersed transformer
Transformer winding materialAluminum / copper
Connection groupDy11 / Dy11-y11
Anti-corrosion gradeC4 / C5
Protection ratingIP54 / IP55
Product features
  • Compact structure with high safety, reliability and scalability
  • Superior resistance to UV radiation and intense sunlight exposure
  • Fireproof and anti-corrosion materials with an industrial air conditioner for real-time monitoring and auto start-up of the boost compartment
  • Intelligent design with an RTU for remote monitoring and operation of switches and auxiliary signals
Scope of application
Utility-scale transmissionLarge-scale renewable energy power stationsLarge industrial & commercial sites
Customization is available for voltage class, capacity, protection rating, enclosure type, colour and monitoring functions. Tell us the site conditions and we will engineer the unit accordingly.
02 / 05

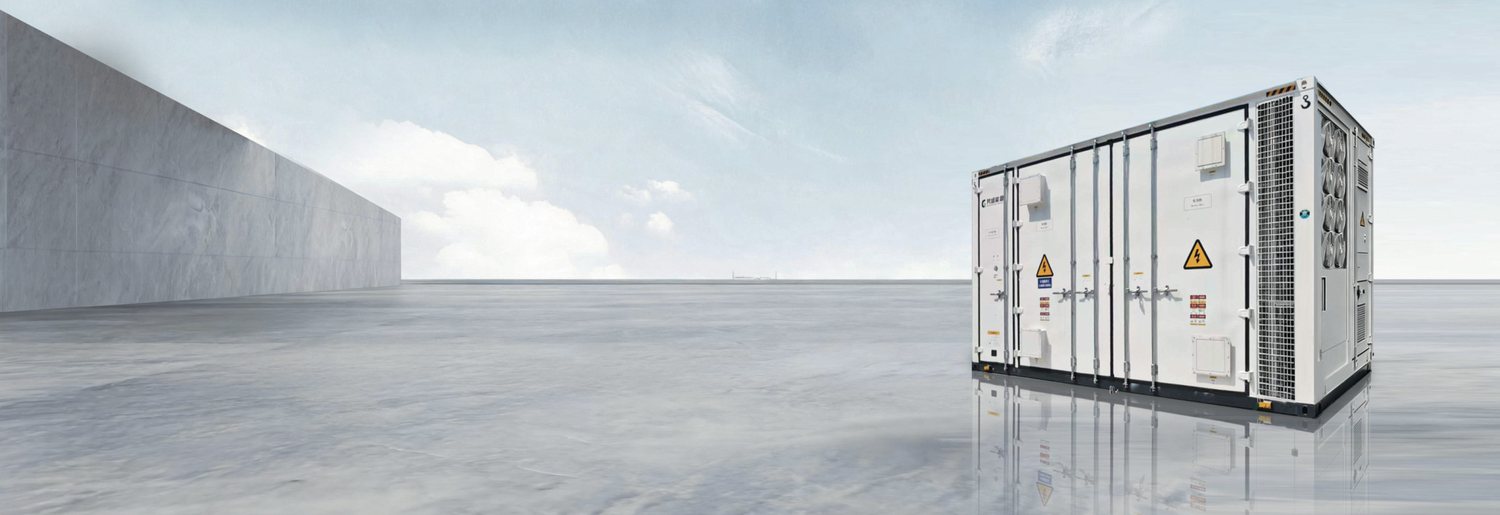

AC/DC Integrated Energy Storage System

交直流融合储能系统
AC/DC Integrated Energy Storage System
Technical parameterSpecification
Product modelGS-ESS-ACDC-5000-L
Battery typeLFP 3.2 V / 314 Ah
Rated capacity5.01 MWh
System configuration1P416S × 12
Max charging / discharging rate0.5P
Rated DC voltage1331.2 V
DC voltage range1164.8 – 1497.6 V
Rated AC side power2500 kW
Rated AC voltage690 V
Cooling methodSmart liquid cooling
Fire protectionContainer-level gas + pack-level aerosol + water fire suppression
System communicationRS485 / CAN / Ethernet
Protection ratingIP54
Dimensions (L × W × H)6058 × 2438 × 3100 mm
Weight44,000 kg
Product features
  • Dual-layer fire suppression combining clean gas suppression and water fire suppression, with early risk warning and active safety response
  • Intelligent liquid cooling with refined thermal management, keeping cell temperature difference small
  • Grid-connected, off-grid operation and seamless mode switching
  • Anti-islanding protection plus over-current, over-voltage, over-temperature and short-circuit protection
  • Grid-forming characteristics supporting island operation and black start
Scope of application
Utility-scale transmissionLarge-scale renewable energy power stationsLarge industrial & commercial sites
Customization is available for voltage class, capacity, protection rating, enclosure type, colour and monitoring functions. Tell us the site conditions and we will engineer the unit accordingly.
03 / 05

Energy Storage DC Container

储能直流舱
Energy Storage DC Container
Technical parameterSpecification
Product modelGS-ESS-DC-5000-L / GS-ESS-DC-6250-L-G1
Battery typeLFP 3.2 V / 314 Ah, LFP 3.2 V / 587 Ah
Rated capacity5.01 MWh / 6.25 MWh
System configuration1P416S × 12 / 1P416S × 8
Max charging / discharging rate0.5P
Rated DC voltage1331.2 V
DC voltage range1164.8 – 1497.6 V
Cooling methodIntelligent liquid cooling
Fire protectionGas suppression + water fire suppression
System communicationRS485 / CAN / Ethernet
Anti-corrosion gradeC3 / C4, C5 optional
Protection ratingIP54
Dimensions (L × W × H)6058 × 2438 × 2896 mm
Weight42,000 / 46,000 kg
Product features
  • Modular pre-installed design with standardised interfaces for fast deployment
  • Powered by an intelligent AI model for fault self-diagnosis and expert troubleshooting, shortening commissioning cycles
  • Outdoor enclosure rated IP54 with an operating temperature range of -20 °C to 55 °C
  • Three-phase voltage unbalance ≤ 2% (short-term ≤ 4%)
Scope of application
Utility-scale transmissionLarge-scale renewable energy power stationsLarge industrial & commercial sites
Customization is available for voltage class, capacity, protection rating, enclosure type, colour and monitoring functions. Tell us the site conditions and we will engineer the unit accordingly.
04 / 05

Distributed Liquid-Cooled ESS Cabinet

分布式液冷储能系统一体机
Distributed Liquid-Cooled ESS Cabinet
Technical parameterSpecification
Product modelGSY125-261
Rated energy261.248 kWh
Rated power125 kW
Rated AC voltage400 V
Maximum output power137.5 kVA
Maximum AC output current198.6 A
Power factor> 0.99
WiringThree-phase four-wire
Thermal managementLiquid cooling
System efficiency≥ 88%
Protection ratingIP55
Operating temperature-20 °C to 60 °C
Dimensions (W × H × D)1050 × 2470 × 1400 mm
Weight2550 kg
Certification standardGB/T 36276, GB/T 36548, GB/T 34131, GB/T 34120, GB/T 34133
Product features
  • Flexible expansion: modular multi-unit grid connection with a compact footprint and flexible deployment
  • Factory-integrated and tested for plug-and-play connection and short construction cycles
  • Safe and efficient: intelligent liquid cooling with cell temperature difference within 3 °C, electrical and battery cell isolation with multi-layered fire prevention and suppression
  • Cloud-edge collaborative O&M for convenient module maintenance
Scope of application
Distribution transformer area storageC&I parksCommercial complexesCharging stations
Customization is available for voltage class, capacity, protection rating, enclosure type, colour and monitoring functions. Tell us the site conditions and we will engineer the unit accordingly.
05 / 05

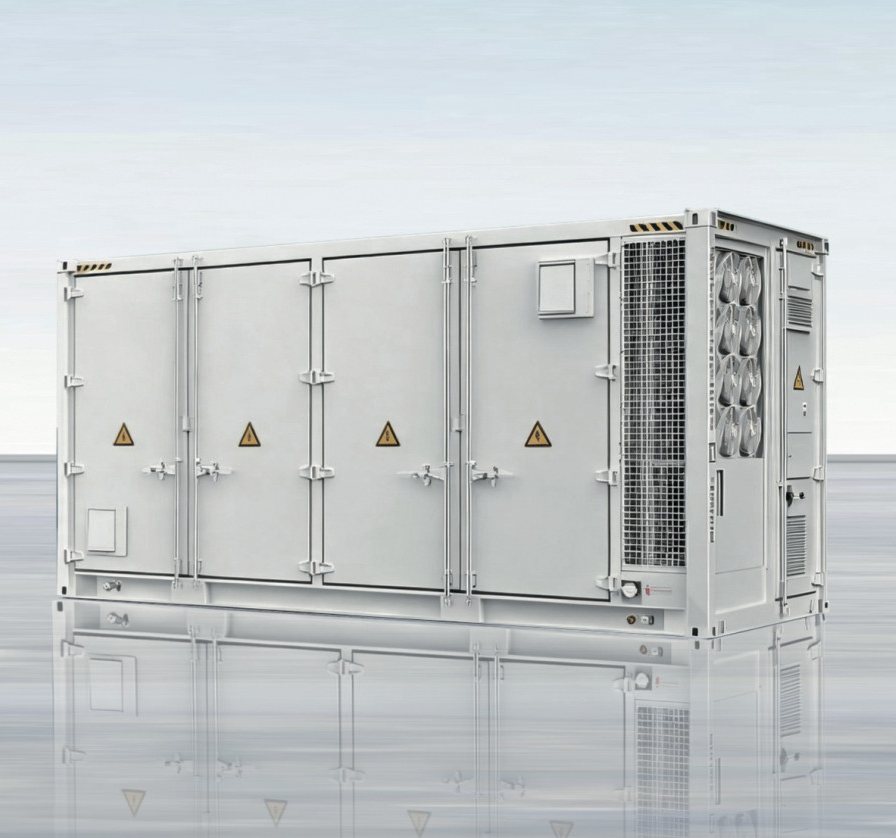

Distributed Air-Cooled ESS Cabinet

分布式风冷储能系统一体机
Distributed Air-Cooled ESS Cabinet
Technical parameterSpecification
Product modelGS100-215-A3 / GS100-215-2401P
Nominal capacity215 kWh
Nominal voltage768 V
Maximum output power100 kW
Maximum battery current171 A
Maximum grid power380 V / 400 V
Nominal grid frequency50 Hz / 60 Hz
Allowed grid frequency47.5 Hz – 52.5 Hz
Max charging / discharging rate0.5P
Cell typeLFP 3.2 V / 314 Ah
System configuration1P240S
Thermal managementAir cooling
Fire protectionPerfluorohexanone (container level) + aerosol (pack level) + water fire suppression
System communication4G / Ethernet
Protection ratingIP54
Weight2510 / 2000 kg
Product features
  • Flexible expansion: modular multi-unit grid connection, small footprint
  • Factory-integrated and tested for short construction cycles
  • Stable and convenient: high-quality LFP cells for long cycle life, cloud-edge collaborative O&M
  • Smart air-cooling thermal management for easy pack maintenance
Scope of application
Distribution transformer area storageC&I park energy storageCommercial complex energy storageCharging station storage
Customization is available for voltage class, capacity, protection rating, enclosure type, colour and monitoring functions. Tell us the site conditions and we will engineer the unit accordingly.
